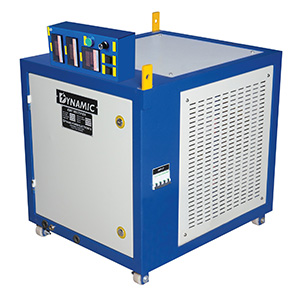

IGBT Rectifiers
Upto 10000 AMPS
Dry Type (Air Cooled) IGBT Based Rectifier Equipment having the following specifications:
Technical Specifications:
- Type : IGBT Based High frequency Rectifier
- Input Frequency : 50-60 Hz
- Duty Cycle : 100% Continuous
- Type of Cooling : ANAF
- Ambient Temp : 45° Deg C
- Digital display for DC Volts and Dc Amps
- Constant Current/Constant Voltage Setting
- Not Affected by Input power fluctuations (works on wide input voltage range 380-440V keeping in view the Indian power supply conditions)
- Easy Operation & maintenance
- High Accuracy & high reliability
- Timer Function
- Output Regulation Range 0 to 100%
- MCB/MCCB on input Side
- Remote Control Box with 8 meter wire (Additional wire at an extra cost)
- Power Coated Enclosure
- Designed for 100% Continuous Duty Cycle
- Best suited to Indian Atmospheric conditions
- Compact Design
- Light in Weight
- High Efficiency (more than 90%)
- Almost negligible power consumption at No Load condition
- In case of power failure, automatic switching on of rectifier and start rising up to preset voltage and current on resumption of power
| On Load Volts | DC Output Amperes | |||||||
|---|---|---|---|---|---|---|---|---|
| 12 | 250 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | upto 10000 |
| 16 | 250 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | upto 10000 |
| 24 | 250 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | upto 10000 |
| 80 | 250 | 500 | 750 | 1000 | 1500 | 2000 | 3000 | upto 10000 |
- Protection against high/low input voltage
- Protection against phase failure
- Protection against Overload/Short Circuit
- Protection against Over temperature
